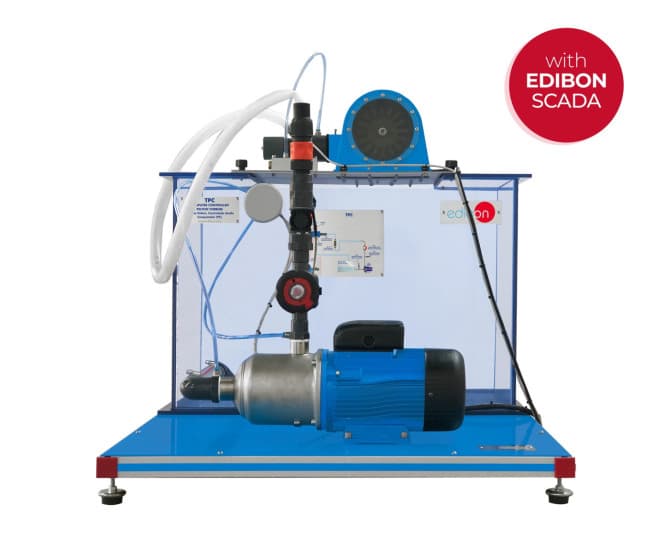

The Computer Controlled Pelton Turbine, "TPC", designed by EDIBON, consists of a small-scale Pelton turbine, with a valve that allows the flow to be regulated. The turbine includes a PELTON runner with 16 buckets, which can be clearly seen through the turbine’s transparent casing. In order to raise the fluid, it has a computer controlled pump that enables the impelled flow to pass through the turbine, in which part of its energy is left, causing the turbine to turn, overcoming the external resistance caused by an electromagnetic brake. This computer controlled brake makes it possible to vary the braking load on the turbine. In addition, the unit is equipped with a pressure sensor placed at the turbine water inlet which measures the inlet pressure, a flow sensor to measure the turbine water inlet flow, an optical sensor which determines the speed of the turbine shaft, and has two pressure sensors at the pump inlet and outlet, in order to obtain its characteristic curve. The pump-turbine group has a tank and a pipes system which allow to work constantly with recirculated fluid to avoid the indiscriminate water consumption. This Computer Controlled Unit is supplied with the EDIBON
