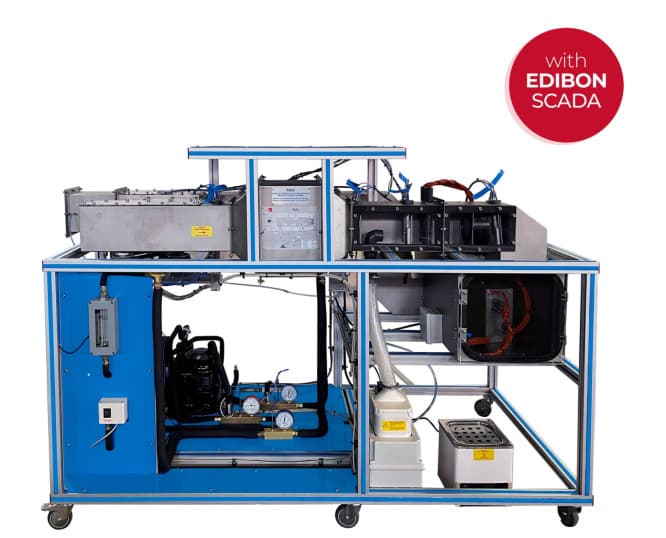

Computer Controlled Air Conditioning Unit with Climatic Chamber

Details

The Computer Controlled Air Conditioning Unit with Climatic Chamber, "TSAC", designed by EDIBON, is clearly arranged and represents a complete air conditioning system with an air duct and a climatic chamber. The main components of the air conditioning system are the air cooler with condensing unit, fan, steam humidifier and air heater. The air cooled condensing unit includes a compressor, condenser and expansion valve. Three motorized ventilation flaps control the air distribution in the air conditioning system. The climatic chamber is equipped with two different heat sources (wet and dry). For the refrigeration circuit two manometers with integrated temperature scale and a flow meter provide all relevant measurements. The SCADA software developed by EDIBON has a data acquisition system and a climatic controller that enables the automation of the air conditioning system, offering great teaching advantages. The software regulates the components, so the temperature and humidity preset by the user are reached inside the climatic chamber. Besides, the software of the "TSAC" unit allows versus time: This Computer Controlled Unit is supplied with the EDIBON Computer Control System
