Computer Controlled Refrigeration Cycle Demonstration Unit

Details

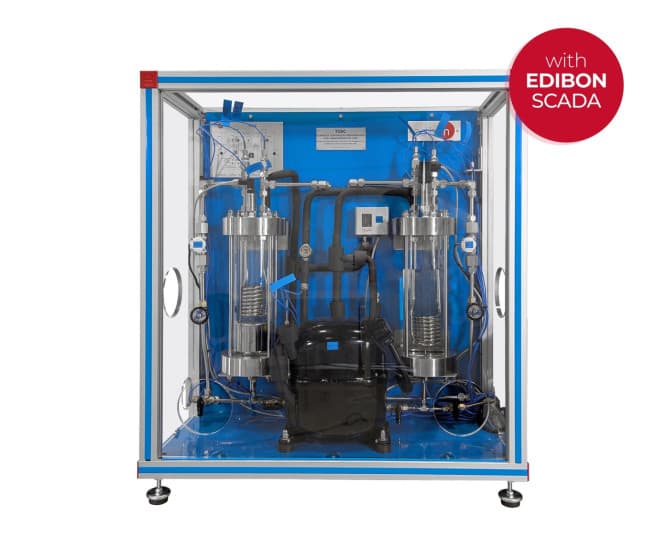

The Computer Controlled Refrigeration Cycle Demonstration Unit, "TCRC", designed by EDIBON, allows the demonstration of vapour compression refrigeration and heat pump cycle with visual observation of all important processes. Thanks by utilising a non-toxic refrigerant fluid with a low vapour pressure (NE30-Fluid 0z36 refrigerant, environmental friendly), the evaporation and condensation processes are clearly visible in the glass cylinders (evaporator and condenser). The evaporator is a vertical cylinder, made of glass, containing NE30-Fluid 0z36, closed on both ends. Into the glass cylinder there is a niquel-plated copper coil. Hermetic compressor draws vapour from the evaporator and compresses this before discharging it to the condenser. The low pressure of the evaporator causes the refrigerant to boil. The water flowing through the coil heats the refrigerant causing the vapours generation and the water temperature decreases. From the compressor the high pressure vapour passes to the condenser. The condenser, as the evaporator, is a glass recipient closed on both ends with a nickel-plated copper coil into it. Vapour condenses on the surface of the coil and falls to the bottom
