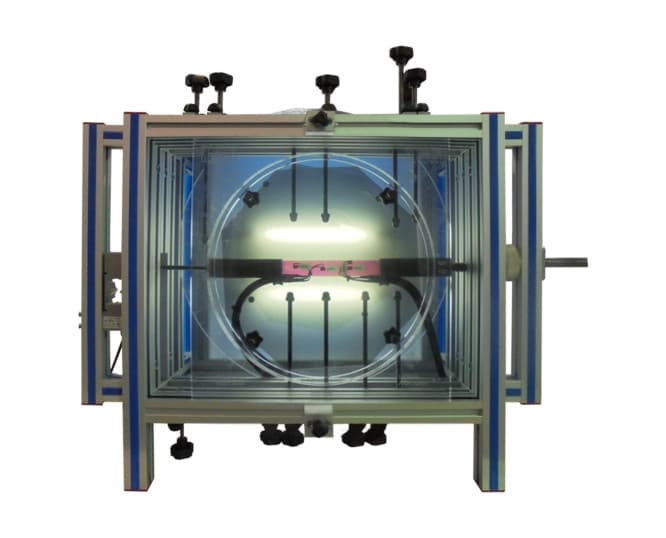

The Computer Controlled Photoelasticity Unit, "EFOC", has been designed by EDIBON for photoelasticity practices, illustrating the subjects of the photoelasticity theory, the elasticity theory, strength of materials, and structure theory. It is very suitable for the introduction and study of photoelasticity: optical elements, isochromatic, isoclinic, band order, band factor, edge tensionsing, and for strain and stress analysis and measurement with strain gauges. With the aid of the SCADA system it is possible to analyze and process the captured data during test experiments, making measurements with strain gauges. Using this unit photoelastic experiments and practices of transparent test specimens (models) may be performed. The different test specimens are subjected to loading by external forces and have poralised light shone through them. A load application element can apply tensile, bending, compressive, and distributed and punctual loads to the specimen. The stresses and strains occurring in the test specimen are represented as bright spots or figures of different colours, and we can visualise the distribution of stress. We offer a wide range of test specimens for making a
